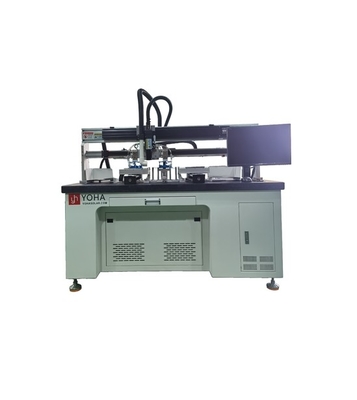

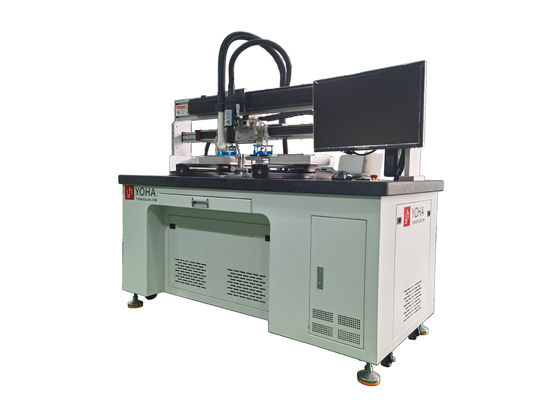

Automatic Solar Cell Fiber Cutting Machine | Low-Power Laser Cutter for Solar Panel Production
| Place of Origin | China |
|---|---|
| Brand Name | YOHA |
| Certification | CE |
| Model Number | YHC-30 |
| Minimum Order Quantity | 1 |
| Price | Contact Us |
| Packaging Details | Wooden cases |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cell Size | 156 166 182 210mm Cells | Laser Source | 1064nm |
|---|---|---|---|
| Precision | ≤0.02mm | Scribing Speed | 600mm/s |
| Service Life | ≥ 100000 H | Energy Consumption | ≤ 1000W |
| Highlight | solar cell fiber laser scribing machine,fiber laser scribing machine,Automatic solar cell fiber laser scribing machine YOHA |
||
Product Description
Technical specifications:
Application
The Automatic Solar Cell Fiber Cutting Machine is designed for high-precision cutting and scribing of solar semiconductor silicon wafers, ceramic substrates, and delicate materials. This Laser Cutting Machine ensures minimal surface damage, making it ideal for solar panel production lines and advanced semiconductor manufacturing processes.
Key Features
| Feature | Description |
|---|---|
| Fiber Laser Technology | Powered by a 1064nm fiber laser (㎡ <1.3 beam quality) for high-accuracy cutting (≤0.02mm precision). |
| Low-Power Laser Cutter | Energy-efficient design with ≤1000W consumption and air-cooled operation. |
| Automated Workflow | Double-station scribing structure for seamless integration into solar panel production lines. |
| Durability | Maintenance-free, fully enclosed optical path with ≥100,000-hour service life. |
| Compact Design | Space-saving dimensions (1300×760×1350mm) and user-friendly controls. |
Specifications
| Parameter | Value |
|---|---|
| Laser Source | 1064nm Fiber Laser Machine |
| Scribing Speed | 600mm/s |
| Cutting Efficiency | <1500pcs/h |
| Power Consumption | ≤1000W (Low-Power Operation) |
| Electro-Optical Efficiency | ≥35% |
| Compatible Cell Sizes | 125/156/166/182/210mm (standard & non-standard) |
Technical Parameters
| Parameter | Specification |
|---|---|
| Scribing Precision | ≤0.02mm |
| Scribing Width | ≤0.03mm |
| Worktable Stroke | 700×400mm (glass table) |
| Compressed Air | 0.5–0.8MPa |
| Input Voltage | 220VAC/50Hz |
Environmental Requirements
| Requirement | Standard |
|---|---|
| Workspace | Clean, dust-free, and air-conditioned. |
| Temperature/Humidity | 5–30°C, <75% humidity. |
| Installation Zone | Vibration/magnetic interference-free. |
