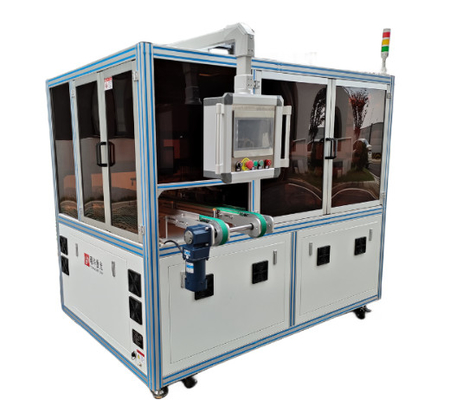

Advanced Solar Panel Sorting Machine Automatic Solar Cell IV Tester & Testing Equipment
| Place of Origin | China |
|---|---|
| Brand Name | YOHA |
| Certification | CE |
| Model Number | YH-IV-AAA |
| Minimum Order Quantity | 1 |
| Price | Contact Us |
| Packaging Details | Wooden cases |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | We can provide long-term stable supply. For more details, please contact us |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Effective Test Range | 220 X 220mm | Spectrum | IEC60904-9 |
|---|---|---|---|
| Light Intensity Non-uniformity | ≤ ± 2% AAAA | Instability Degree Of Irradiation | ≤ ± 2% AAAA |
| Test Result Consistency | ≤ ± 0.5% AAA | Test Error | ≤ 1% AAA |
| Highlight | Advanced Solar Cell IV Tester,Solar Panel Sorting Machine,Automatic Solar Cell IV Tester |
||
Product Description
Technical specifications:
This system is designed for solar PV panel manufacturers aiming to enhance their Solar Panel Production Line. It functions as a high-precision IV Tester and Automatic Solar Cell IV Tester integrated within an IV Integrated Machine. In addition, it serves as an IV Sorting Integrated Testing Machine and forms a critical component of Mass IV Testing Equipment for efficient sorting and analytical testing of solar panels.
Features:
- The solar cell tester is a high-reliability, high-precision IV Tester and a cornerstone of the overall IV Integrated Machine system.
- It adopts a high-power, long-life imported pulses xenon lamp as the simulator light source, ensuring stable performance across Mass IV Testing Equipment setups.
- The equipment features an imported ultra-high-precision four-channel synchronous data acquisition card for accurate data collection in an Automatic Solar Cell IV Tester environment.
- A professional superlinear electronic load guarantees precise test results, thereby enhancing the effectiveness of the IV Sorting Integrated Testing Machine.
- Non-contact detection is employed to prevent secondary damage to the battery, improving the overall reliability of the IV Tester and IV Integrated Machine.
Parameters:
| Parameter | Specification |
| Effective Test Range | 220 × 220 mm |
| Test Range | 0–20 W |
| Lamp Spectrum | In line with IEC60904-9 and JISC8933 (A Grade) |
| Light Intensity | 100 mW/cm² (continuously adjustable range: 20–123 W/cm²) |
| Light Intensity Non-uniformity | ≤ ±2% AAAA |
| Irradiation Instability | ≤ ±2% AAA |
| Test Result Consistency | ≤ ±0.5% AAA |
| Electrical Properties Test Error | ≤ 1% AAA |
| Single Flash Time | 10–100 ms (customized) |
| Measuring Voltage | 0–0.08 V (resolution: 1 mV) |
| Measuring Current | 0–20 A (resolution: 1 mA) |
| Test Parameters | Isc, Voc, Pmax, Vm, Im, FF, EFF, Temp, Rs, RSH |
| Power Demand | 220 V / 50 Hz / 2 KVA |
| Production Capacity | 2000 pcs/hour (average speed: ~1.8 seconds per tablet; excludes pick-and-place time) |
| Fragment Rate | ≤ 0.05% |
| Defective Over-Judgment Rate | ~6% (calculated as A Grade cell misjudged as B Grade / Tested Quantity) |
| Missed Rate | ≤ 0.3% (calculated as Quantity of missed Grade B / Tested Quantity) |
Environmental Requirements:
- The testing venue should be larger than 3 m × 6 m, with a dedicated testing room height over 2.5 m and room illumination under 100 lux—essential conditions for the Automatic Solar Cell IV Tester and IV Sorting Integrated Testing Machine.
- The room must be equipped with heating and air conditioning to maintain a stable indoor temperature around 25°C, ensuring optimal operation of the Mass IV Testing Equipment.
- A power supply of 220V/2KW with proper grounding is required to guarantee safe and efficient functioning of the IV Tester and IV Integrated Machine.
- To simulate consistent testing conditions, a sufficient area of the test battery must be temporarily connected to the test chamber, ensuring that the Automatic Solar Cell IV Tester operates under room temperature conditions.
- The test room should include a compressed air source interface with a stable air pressure of 5–8 Kg/cm², supporting the performance of the IV Sorting Integrated Testing Machine.
