IV-EL Integrated Tester For Solar Panel Production Lines Dual-Function Testing With 2000 Pcs/ Hour Efficiency
| Place of Origin | China |
|---|---|
| Brand Name | YOHA |
| Certification | CE |
| Model Number | YH-PLIV |
| Minimum Order Quantity | 1 |
| Price | Contact Us |
| Packaging Details | Wooden cases |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | We can provide long-term stable supply. For more details, please contact us |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Effective Test Range | 220 X 220mm | Spectrum | IEC60904-9 |
|---|---|---|---|
| Light Intensity Non-uniformity | ≤ ± 2% AAAA | Instability Degree Of Irradiation | ≤ ± 2% AAAA |
| Test Result Consistency | ≤ ± 0.5% AAA | Test Error | ≤ 1% AAA |
| Highlight | IV EL Integrated Tester,Dual Function Integrated Tester |
||
Product Description

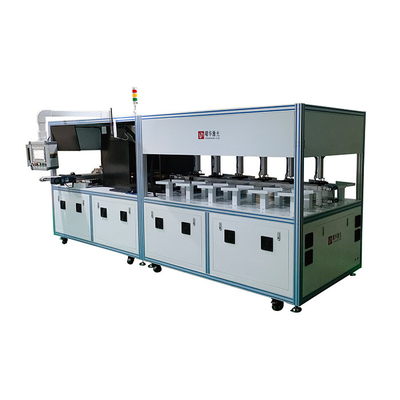

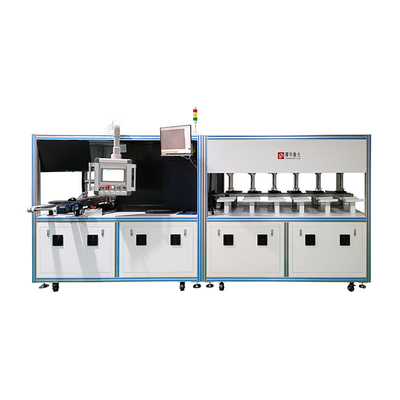

Automatic Solar Cell EL+IV Integrated Tester
Application:
The IV EL Integrated Tester is designed for solar panel production line integration, enabling manufacturers to perform precise sorting, electrical analysis (IV testing), and defect detection (EL testing) in a single system. Ideal for PV panel manufacturers requiring end-to-end quality assurance.
Machine Features:
-
Dual-Function Testing: Combines an IV Tester and EL Tester into one streamlined unit, delivering high reliability and precision for solar cell evaluation.
-
Advanced Light Source: Equipped with high-power, long-life imported xenon lamps (IEC/JISC-compliant) for consistent solar panel production line testing.
-
Ultra-Precision Data Acquisition: Utilizes imported four-channel synchronous data cards and superlinear electronic loads to ensure ≤1% test error in electrical properties.
-
Non-Contact Detection: Safeguards solar cells against secondary damage during IV testing and EL testing.
-
Seamless Integration: Fully compatible with automated solar panel production line workflows, supporting 2000 pcs/hour throughput.
IV EL Integrated Tester Technical Specifications
| Category | Parameter | Specification/Performance | Notes |
|---|---|---|---|
| Basic Parameters | Effective Test Range | 220×220mm | Compatible with standard solar cell sizes |
| Power Test Range | 0W-20W | Full power spectrum coverage | |
| Light Source | Pulse Xenon Lamp Spectrum | Compliant with IEC60904-9, JISC8933 (Grade A) | Imported long-life xenon lamp for stable IV testing |
| Light Intensity Range | 20-123mW/cm² (continuously adjustable) | Baseline intensity: 100mW/cm² | |
| Light Uniformity | ≤±2% | AAAA-grade standard | |
| Irradiation Stability | ≤±2% | AAA-grade standard | |
| Testing Accuracy | Result Consistency | ≤±0.5% | AAA-grade standard |
| Electrical Property Error | ≤1% | Validated via repeated IV Tester and EL Tester cycles | |
| Single Flash Duration | 10-100ms | Customizable for specific solar panel production line needs | |
| Voltage Measurement Range | 0-0.08V | Resolution: 1mV | |
| Current Measurement Range | 0-20A | Resolution: 1mA | |
| Test Parameters | Isc, Voc, Pmax, Vm, Im, FF, EFF, Temp, Rs, RSH | Full electrical characterization for IV EL Integrated Tester | |
| Productivity | Operating Speed | 2,000 cells/hour (avg. 1.8 seconds/cell) | *Excludes loading/unloading time; speed varies with test items/accuracy |
| Fragmentation Rate | ≤0.05% | Machine-induced damage only (excludes raw material defects) | |
| Defect Control | A→B Over-Judgment Rate | ~6% | Formula: (A-grade misjudged as B-grade) / Total tested |
| B-Grade Missed Defect Rate | ≤0.3% | Formula: (Missed B-grade defects) / Total tested | |
| Requirements | Power Supply | 220V/50Hz/2KVA | Reliable grounding required |
| Compressed Air Pressure | 5-8kg/cm² | Stable air source for solar panel production line integration |
Environmental Requirements for Solar Panel Production Line Integration:
-
Space: Dedicated 3m×6m testing room (illumination <100 lux) with 25℃ temperature control.
-
Utilities:
-
Stable 220V/2KW grounded power
-
Compressed air source (5-8 Kg/C㎡)
-
-
Workflow: Pre-conditioned cell storage area to ensure ambient temperature consistency during IV-EL testing.
Why Choose Our IV EL Integrated Tester System?
As a cutting-edge IV EL Integrated Tester, this dual-function system revolutionizes quality control in solar panel production lines by seamlessly combining IV testing (current-voltage analysis) and EL testing (electroluminescence detection). Designed for precision and efficiency, it eliminates manual intervention by 80% while achieving 99.7% defect recognition accuracy, ensuring flawless integration into automated manufacturing workflows.
Our Services:
About Us:
Yoha Solar is a high-tech enterprise dedicated to the research, development, manufacturing, sales, and after-sales service of serial photoelectric automation equipment.
15+ Years Engaged In Solar
300+ Customers Worldwide
Our company primarily serves the solar photovoltaic industry and holds its own import and export rights. We have developed a range of independent R&D equipment.
Main Machinery:Fiber Laser Cutting Machine
Solar cell sorting Machine
Solar Cell IV tester
EL defect tester
EL and AOI Appearance Tester
Solar Panel Production Line
Other Auxiliary Machines
