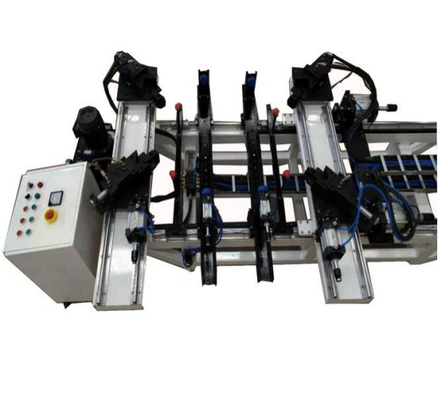

High-Precision Solar Cell Framing Machine For Frame Forming And Solar Panel Frame Assembly
| Place of Origin | China |
|---|---|
| Brand Name | YOHA |
| Certification | CE |
| Model Number | YH-2615 |
| Minimum Order Quantity | 1 |
| Price | Contact Us |
| Packaging Details | Wooden cases |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Minimum Frame Forming Size | 400mm × 400mm | Maximum Frame Forming Size | 2600 × 1500mm |
|---|---|---|---|
| Power Supply | 380V | Use Ambient Temperature | 10 ℃ -60 ℃ |
| Weight | 1T | Outline Dimension | 3000 *1650 *1050 (mm) |
| Highlight | Frame Forming Solar Cell Framing Machine,Solar Panel Frame Assembly Machine,High Precision Solar Cell Framing Machine |
||
Product Description
Solar Panel Framing Machine
Application:
Our advanced Solar Cell Framing Machine is engineered for efficient Frame Forming of solar battery panels and similar products. Designed to seamlessly integrate into any Solar Panel Production Line, this equipment is also perfect for a complete Framing cell production line. The machine supports precise Solar Panel Frame Assembly by combining mechanical fine-tuning with pneumatic and hydraulic processes.
The machine comprises a robust frame body, movable slide blocks (including a dedicated middle accessory frame block), a fixed slide block, a pneumatic positioning lock, a hydraulic station, and an operating control cabinet. Using a comprehensive Frame Forming process that involves pneumatic locking, precise mechanical adjustment, pneumatic frame driving, flattening, and hydraulic riveting, it delivers noise-free operation, steady performance, and a safe, reliable structure.
Main Features & Applications:
-
Versatile Frame Forming Process:
- Ideal for Solar Panel Frame Assembly on a Solar Panel Production Line and integrated into a Framing cell production line.
- Specially designed for aluminum alloy frames to ensure proper corner clearance for corner rivet-type connections, minimizing interference during riveting.
-
High Precision & Dimensional Accuracy:
- Supports various frame profiles (with customizable press heads available).
- Mechanical fine-tuning combined with precise positioning and pneumatic locking guarantees exceptional Frame Forming accuracy.
-
Efficient Production:
- A pneumatic flat surface flattening mechanism ensures overall flatness, while combining frame assembly and riveting into one process boosts production capacity.
- Simultaneous four-corner hydraulic riveting delivers consistent, stable product performance.
Technical Parameters:
| Specification | Details |
|---|---|
| Minimum Frame Size | 400mm × 400mm |
| Maximum Frame Size | 2600mm × 1500mm |
| Frame Assembly Accuracy | ±1mm (both opposite ends and diagonals) |
| Power Supply | 380V |
| Gas Pressure | 0.4-0.8 MPa |
| Hydraulic Pressure | 1.0-16 MPa |
| Operating Temperature | 10℃ - 60℃ |
| Weight | 1 Ton |
| Overall Dimensions | 3000 × 1650 × 1050 mm |
