Advanced Upper Lighting IV Tester for Precision Solar Panel Production Line Integration
| Place of Origin | China |
|---|---|
| Brand Name | YOHA |
| Certification | CE |
| Model Number | YHPT-HM-A+A+A+ |
| Minimum Order Quantity | 1 |
| Price | Contact Us |
| Packaging Details | Wooden cases |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Lamp Spectrum | IEC60904-9 | Light Intensity | 1000W/m² |
|---|---|---|---|
| Light Intensity Non-uniformity | ≤±2%[AAA] | Instability Degree Of Irradiation | ≤±1%[AAA] |
| Test Results Consistency | ≤±0.05%[AAA] | Test Error Of Electrical Properties | ≤1% AAA |
| Highlight | Advanced Upper Lighting IV Tester,Upper Lighting IV Tester |
||
Product Description

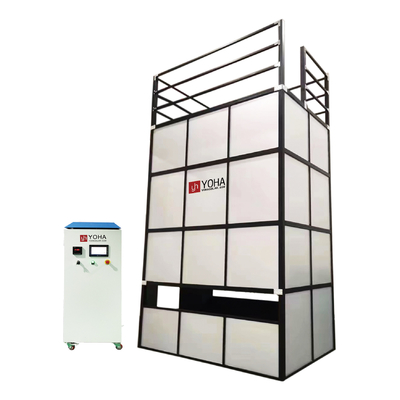

Automated Solar Cell IV Tester: Revolutionizing Solar Panel Production Line Efficiency
The Automated Solar Cell IV Tester is a critical component in modern solar panel production lines, designed for rapid, accurate evaluation of monocrystalline and polycrystalline silicon modules. As mass IV testing equipment, the IV tester integrates seamlessly into industrial workflows, delivering unmatched precision in electrical performance analysis.
Key Features of the IV Integrated Machine:
- Customized Compatibility: Supports PERC, TOPCon, HJT, SUNPOWER, IBC, and thin-film modules, including MBB and half-cut designs, ensuring universal adaptability.
- High-Efficiency Upper Lighting: Mimics real solar conditions with a 300-1200nm full-spectrum range and adjustable 10-150ms pulses for optimal I-V curve measurement.
- Advanced Spectral Performance: Exceeds industry standards with A+A+A+ ratings in unevenness, spectral matching, and stability.
- Smart Data Management: Four-wire measurement, 8,000 data-point capture, and automated temperature/irradiance compensation ensure reliable results.
- Durability & Flexibility: 80,000-flash xenon lamp lifespan, vertical light emission, and side/top illumination configurations suit diverse solar panel production line layouts.
Technical Specifications:
- Effective Testing Area: 2600mm x 1600mm
- Power Range: 5W–650W
- Accuracy: ±0.5% inconsistency, ±1% error
- Continuous Operation: 24+ hours
Equipment Configuration:
- Test host with electronic load
- Xenon light source and optical system
- High-speed A/D data acquisition

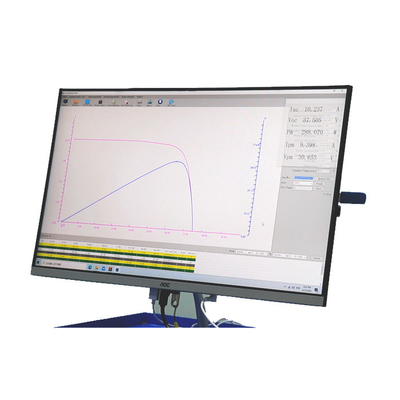

- AI-driven measurement software
