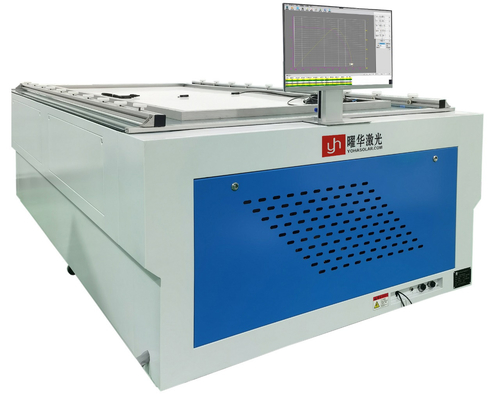

Automated IV Tester for Precise Solar Module IV Testing and Solar Cell Testing in Solar Panel Production Lines 2300mm*1200mm
| Place of Origin | China |
|---|---|
| Brand Name | YOHA |
| Certification | CE |
| Model Number | YHMT-A+A+A+ |
| Minimum Order Quantity | 1 |
| Price | Contact Us |
| Packaging Details | Wooden cases |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Lamp Spectrum | IEC60904-9 | Light Intensity | 1000W/m² |
|---|---|---|---|
| Light Intensity Non-uniformity | ≤±2%[AAA] | Instability Degree Of Irradiation | ≤±1%[AAA] |
| Test Results Consistency | ≤±0.05%[AAA] | Test Error Of Electrical Properties | ≤1% AAA |
| Highlight | 2300mm*1200mm Solar Module IV Tester,Precise Solar Module IV Tester,Automated Solar Module IV Tester |
||
Product Description
I. Application:
This IV Tester is used for the automatic Solar Module IV Testing and electrical performance parameter recording of monocrystalline and polycrystalline silicon solar modules. It ensures high-accuracy IV Curve Measurement as a critical component of the Solar Panel Production Line. This equipment plays a vital role in quality control and Solar Cell Testing processes.
II. Equipment Purpose:
Designed for automatic Solar Module IV Testing, this IV Tester is ideal for efficient and accurate electrical performance testing of monocrystalline and polycrystalline modules. It is an indispensable part of any modern Solar Panel Production Line, ensuring optimal IV Curve Measurement and thorough Solar Cell Testing.
III. Main Technical Specifications and Principles of the Equipment
| Category | Details |
|---|---|
| Simulated Light Source | - Spectral Match: Complies with IEC60904-9 (AM1.5) standards for accurate Solar Module IV Testing - Total Irradiance: 100 mW/cm² - Adjustment Range: 70–120 mW/cm² - Non-uniformity: ±2% - Instability: ±2% - Pulse Duration: 10 ms - Flash Count: Resettable - Xenon Lamp Lifespan: 300,000 flashes (Germany) - Irradiation Direction: Vertical Upward |
| Measurement Range | - Testing Area: 2300 mm × 1200 mm - Power Range: 5W–600W for various module sizes - Voltage: 0–200V (1 mV resolution) - Current: 0–20A (1 mA resolution) - Ambient Temp: 15°C to 35°C |
| Measurement Accuracy | - Result Inconsistency: ±0.5% - Result Error: ±1% |
| Measurement Method | Four-Wire Measurement ensures reliable IV Curve Measurement |
| Measurement Parameters | Isc, Voc, Pmax, Vm, Im, FF, Eff, Temp, Rs, Rsh |
| Interval Time | Every 5 seconds |
| Data Acquisition | I-V and P-V curves with 8000 points — enables detailed IV Curve Measurement for better Solar Cell Testing analysis |
| Condition Correction | Auto irradiance & temperature compensation |
| Temperature Measurement | Built-in infrared thermometer for accurate Solar Module IV Testing |

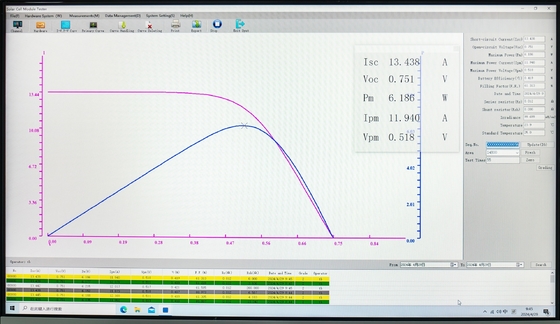

| Test Results | Voice reporting & prompt, graphical display of I-V curves |
| Test Report | Real-time display and recording of IV Curve Measurement - File saving and user-defined naming |
| Summary & Printing | Data summary by time period, Excel export including cumulative IV Curve Measurement results |
| Software | Dedicated for Solar Module IV Testing with temperature input, SN control, and defect range settings |
| Working Time | Supports continuous operation for over 24 hours — ideal for busy Solar Panel Production Line tasks |
IV. Equipment Configuration
| Component | Quantity |
|---|---|
| Test Host with Electronic Load | 1 unit |
| Light Source with Optical System | 1 set |
| Computer | 1 unit |
| High-Speed A/D Board | 1 piece |
| Measurement Software | 1 set |
| Standard Cell for Calibration | 1 unit |
V. Features

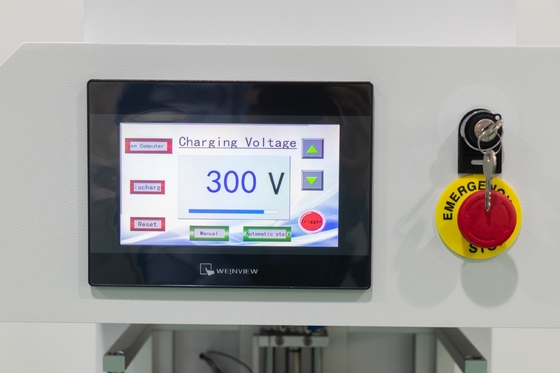

| Feature | Specification |
|---|---|
| Power Supply | Mingwei |
| Control System | Siemens PLC |
| Xenon Lamp | German Hamamatsu |
| Touch Screen | Weilun Tong |
| Voice Reporting | Included — enhances operator experience during Solar Cell Testing |
