A+A+A+ Solar Simulator for High-Accuracy Large Panel IV Testing -- 2600mm*1500mm

Place of Origin China
Brand Name YOHA
Certification CE
Model Number YHMT-A+A+A+
Minimum Order Quantity 1
Price Contact Us
Packaging Details Wooden cases
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Lamp Spectrum IEC60904-9 Light Intensity 1000W/m²
Light Intensity Non-uniformity ≤±2%[AAA] Instability Degree Of Irradiation ≤±1%[AAA]
Test Results Consistency ≤±0.05%[AAA] Test Error Of Electrical Properties ≤1% AAA
Leave a Message
Product Description

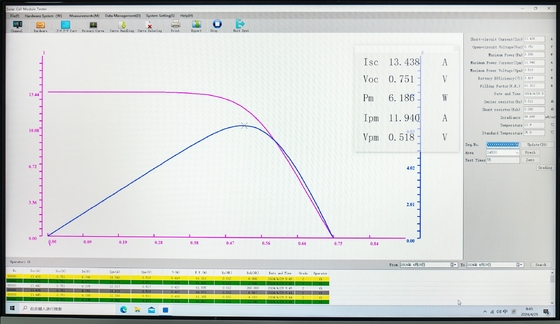

A+A+A+ Solar Simulator for High-Accuracy Large Panel IV Testing -- 2600mm*1500mm 0

A+A+A+ Solar Simulator: Precision Automation for Solar Panel Production Lines

The A+A+A+ Solar Simulator revolutionizes quality assurance in photovoltaic manufacturing, combining Large Panel IV Tester capabilities with unmatched spectral accuracy. Designed for seamless integration into solar panel production lines, this Automatic Solar Cell Tester delivers rapid, reliable evaluations of monocrystalline, polycrystalline, and thin-film modules under IEC 60904-9 standards.


Key Advantages of the Large Panel IV Tester:

  1. A+A+A+ Spectral Compliance: Achieves ≤±1% irradiation instability and ≤±2% light non-uniformity, ensuring global benchmark performance for PERC, TOPCon, and HJT modules.
  2. Expansive Testing Area: 2600x1500mm Large Panel IV Tester accommodates next-gen oversized modules, ideal for high-efficiency cell designs.
  3. Adaptive Flash Technology: Adjustable 60-150ms pulses and 300,000-flash xenon lamp endurance support 24/7 solar panel production line demands.
  4. Four-Wire Precision: 14-bit, 8,000-point IV Tester data capture with 1mV/1mA resolution minimizes resistance errors.
  5. Smart Environmental Compensation: Auto-adjusts for temperature (-25°C–40°C) and irradiance (700–1200W/m²), ensuring accuracy in extreme conditions.




    Technical Superiority:

    • Voltage/Current Range: 0-200V / 200mA-20A | Classification Speed: <20s/cycle

    • Environmental Resilience: Operates at 15–30°C, 40% humidity, 923m elevation

    • Safety Compliance: Explosion-proof cabinet and Siemens PLC integration

    Applications:

    • Production-Line Grading: Instant digital classification via voltage/current thresholds.

    • R&D Validation: Tracks 10+ parameters (Rs, Rsh, FF, EFF) for advanced cell optimization.

    • Global Certification: Guarantees IEC60904-9 alignment for export-ready modules.


    Configuration Highlights:

    • Dual xenon light sources with optical calibration

    • Industrial PC + TK6070IH touchscreen interface

    • High-speed A/D converter and dedicated analysis softwareOur Services:

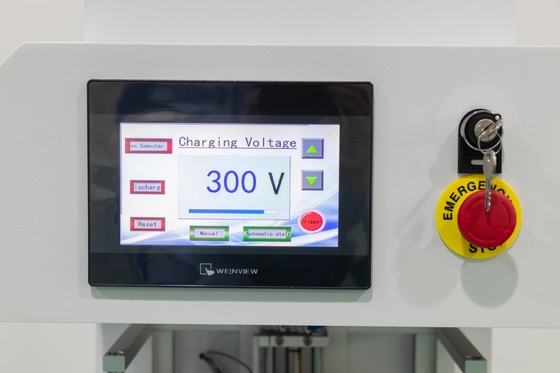

      A+A+A+ Solar Simulator for High-Accuracy Large Panel IV Testing -- 2600mm*1500mm 1

      About Us:

      Yoha Solar is a high-tech enterprise dedicated to the research, development, manufacturing, sales, and after-sales service of serial photoelectric automation equipment.
      15+
      Years Engaged In Solar
      300+
      Customers Worldwide

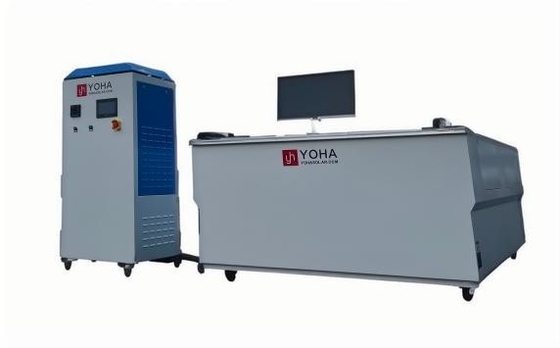

      A+A+A+ Solar Simulator for High-Accuracy Large Panel IV Testing -- 2600mm*1500mm 2

      Our company primarily serves the solar photovoltaic industry and holds its own import and export rights. We have developed a range of independent R&D equipment.

      Main Machinery:Fiber Laser Cutting Machine
      Solar cell sorting Machine
      Solar Cell IV tester
      EL defect tester
      EL and AOI Appearance Tester
      Solar Panel Production Line
      Other Auxiliary Machines
