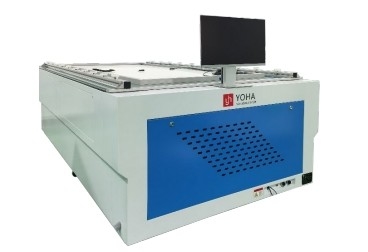

Advanced A+A+A+ Solar Simulator for High-Efficiency Solar Panel Production-- 2600mm*1500mm
| Place of Origin | China |
|---|---|
| Brand Name | YOHA |
| Certification | CE |
| Model Number | YHMT-A+A+A+ |
| Minimum Order Quantity | 1 |
| Price | Contact Us |
| Packaging Details | Wooden cases |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Lamp Spectrum | IEC60904-9 | Light Intensity | 1000W/m² |
|---|---|---|---|
| Light Intensity Non-uniformity | ≤±2%[AAA] | Instability Degree Of Irradiation | ≤±1%[AAA] |
| Test Results Consistency | ≤±0.05%[AAA] | Test Error Of Electrical Properties | ≤1% AAA |
Product Description
A+A+A+ Solar Simulator: Precision Testing for Modern Solar Panel Production Lines
The A+A+A+ Solar Simulator delivers unmatched accuracy for solar panel production lines, combining Large Panel IV Tester capabilities with IEC/JIS-certified spectral performance. Designed as an Automatic Solar Cell Tester, it ensures rapid, reliable evaluations of modules up to 2600x1500mm, critical for high-volume manufacturing.
Key Features of the IV Tester:
- Adjustable Flash Pulse Technology: 10–60ms customizable pulses (default 10–30ms) optimize I-V curve measurement for flexible and rigid panels.
- Four-Wire Precision: 14-bit, 8,000-data-point capture ensures ±0.5% consistency, meeting A+A+A+ Solar Simulator standards.
- Smart Compensation: Auto-adjusts irradiance (20–120mW/cm²) and temperature (15–30°C) for real-world simulation.
- Industrial Endurance: 300,000-flash xenon lamp supports 24/7 operation in demanding solar panel production lines.

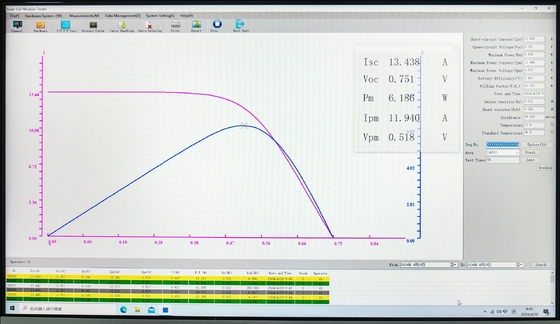

- Multi-Parameter Analytics: Tracks 10+ metrics (Isc, Voc, Rs, Rsh) via tabular/graphic displays for actionable insights.
Technical Excellence:
- Spectral Compliance: IEC60904-9 & JISC8933 (A Grade)
- Accuracy: ≤1% electrical error | ≤±1% light non-uniformity
- Voltage/Current Resolution: 1mV/1mA | Power Range: 5W–650W
Applications:
- Production-Line Sorting: Voice-guided flash prompts streamline workflow efficiency.
- R&D Validation: High-speed data acquisition accelerates PERC/TOPCon development.
- Global Certification: Guarantees compliance for export-ready modules.
Our Services:
About Us:
Yoha Solar is a high-tech enterprise dedicated to the research, development, manufacturing, sales, and after-sales service of serial photoelectric automation equipment.
15+ Years Engaged In Solar
300+ Customers Worldwide
Our company primarily serves the solar photovoltaic industry and holds its own import and export rights. We have developed a range of independent R&D equipment.
Main Machinery:Fiber Laser Cutting Machine
Solar cell sorting Machine
Solar Cell IV tester
EL defect tester
EL and AOI Appearance Tester
Solar Panel Production Line
Other Auxiliary Machines
